NH-Bus bar mounting fuse load break switch KE
- snap on assembly on 60mm bus bars
- for 12-30mm width and 5-10mm thickness
- integrated touch protection
- lockable
- fuse surveillance optional
Size 00 3-pole 125A / 690V
| Item | Item-No. | kg/pc. | Packaging |
| Clamp strap 2,5-50mm2 output at bottom end | 20 9010 | 0,9 | 1 |
| Clamp strap 2,5-50mm2 output at top end | 20 9011 | 0,9 | 1 |
| Monitoring switch for switching status | 200852 000 | 0,03 | 1 |
Size 00 3-pole 160A / 690V
| Item | Item-No. | kg/pc. | Packaging |
| Clamp strap 2,5-70mm2 output at bottom end | 20 8010 | 0,9 | 1 |
| Clamp strap 2,5-70mm2 output at top end | 20 8011 | 0,9 | 1 |
| Clamp strap 2.5-70 mm² output at bottom end | 20 8070 | 1,05 | 1 |
| with electronic fuse monitoring | |||
| Clamp strap 2.5-70 mm² output at top end | 20 8071 | 1,05 | 1 |
| with electronic fuse monitoring | |||
| Terminal screw M8 output at bottom end | 20 8012 | 0,9 | 1 |
| Terminal screw M8 output at top end | 20 8013 | 0,9 | 1 |
| Attachable connection space extension | 20 0148 | 0,02 | 1 |
| Monitoring switch for switching status | 20 0852 | 0,01 | 1 |
Size 1 3-pole 250A / 690V
| Item | Item-No. | kg/pc. | Packaging |
| Terminal screw M10 output at bottom end | 20 8110 | 2,5 | 1 |
| Terminal screw M10 output at top end | 20 8111 | 2,5 | 1 |
| Clamp straps 70-150mm2 (Set) | 20 0420 | 0,01 | 1 |
| Attachable connection space extension | 20 1148 | 0,02 | 1 |
| Monitoring switch for switching status | 20 1852 | 0,01 | 1 |
Size 2 3-pole 400A / 690V
| Item | Item-No. | kg/pc. | Packaging |
| Terminal screw M10 output at bottom end | 20 8210 | 4,5 | 1 |
| Terminal screw M10 output at top end | 20 8211 | 4,5 | 1 |
| Clamp straps 120-240mm2 (Set) | 20 1237 | 0,25 | 1 |
| Attachable connection space extension | 20 2148 | 0,02 | 1 |
| Monitoring switch for switching status | 20 1852 | 0,01 | 1 |
Size 3 3-pole 400A / 690V KE series
Technical data
| NH 000 | NH 00 | NH 1 | NH 2 | ||||||||||
| No. of poles | 3 | 3 | 3 | 3 | |||||||||
| Conventional free air thermal current links NH Ith | 125A | 160A | 250A | 400A | |||||||||
| Rated operational voltage Ue | 690V | 690V | 690V | 690V | |||||||||
| Rated insulation voltage Ui | 1000V | 1000V | 1000V | 1000V | |||||||||
| Rated impulse withstand voltage Uimp | 6kV | 8kV | 8kV | 12kV | |||||||||
| Utilization category | AC 21B | AC 23B | DC 22B | AC 23B | AC 22B | DC 22B | AC 23B | AC 22B | DC 22B | AC 23B | DC 21B | DC 22B | |
| Rated operational current Ie (A) | 125 | 125 | 100 | 160 | 160 | 160 | 250 | 250 | 250 | 400 | 400 | 400 | |
| Rated operational voltage Ue (A) | 690 | 400 | 250 | 690 | 400 | 250 | 400 | 690 | 250 | 690 | 440 | 220 | |
| Conventional nominal impact short circuit current | 690V 400V | 80kA 80kA | 80kA 80kA | 20kA 20kA | 80kA 100kA | 80kA 100kA | 20kA 20kA | 80kA 100kA | 80kA 100kA | 25kA 25kA | 80kA 100kA | 15kA 15kA | 20kA 20kA |
| Rated short circuit making capacity | 690V 400V | 35kA 80kA | 50kA 80kA | 20kA 20kA | 80kA 100kA | 80kA 100kA | 20kA 20kA | 80kA 100kA | 80kA 100kA | 25kA 25kA | 80kA 100kA | 15kA 15kA | 20kA 20kA |
| Rated operational frequency | 50-60 | 50-60 | 50-60 | - | 50-60 | - | 50-60 | ||||||
| Degree of protection | IP 20 | IP 20 | IP 20 | IP 20 | |||||||||
| Environment temperature tolerence °C | -25°C bis +55°C | ||||||||||||

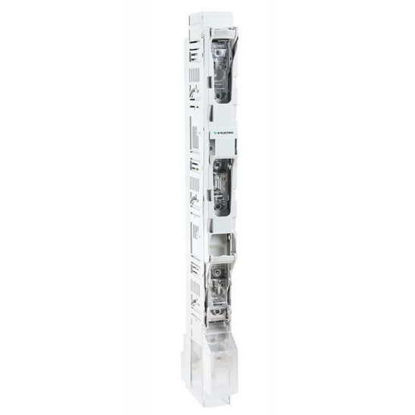

NH00 isolating strip KE 160A / 60mm System, 3-pole, swivel connection, screw-clamp
Number of pieces in the package 1

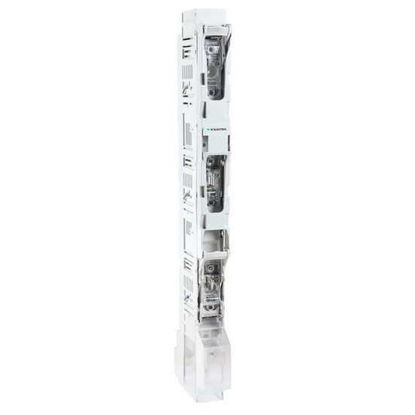

NH00 isolating strip KE 160A / 60mm System, 3-pole, swivel connection, terminals
Number of pieces in the package 1

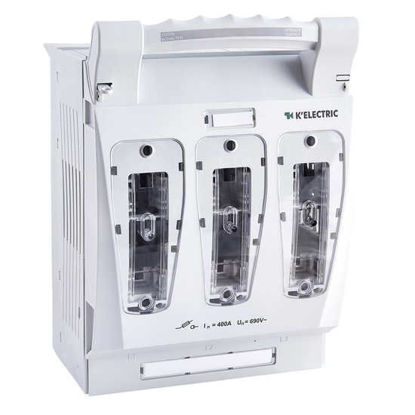

NH-3 Disconnector KE 3pol., 630A, connection above, bus bar system 60mm
Number of pieces in the package 1
NH-3 Disconnector KE 3pol., 630A, connection below, bus bar system 60mm
Number of pieces in the package 1
