Plug and wire multimeter
Connect one end of the patch cable to the multimeter and the other end into the three-phase current transformer. Done – it’s as simple as that.
Plug and wire Krypton multimeter E20
Performance characteristics
- 3 Ø voltage (TRMS)
- 3 Ø current (TRMS)
- 3 Ø power factor
- 3 Ø active power, reactive power, apparent power
- Active energy, reactive energy, apparent energy
- Frequency
- Harmonic distortion factor
- Operating hours counter
- Programmable current/voltage transformer (primary only)
- Additional bar chart display of current in %
- with Modbus RTU (RS485) interface
- with pulse output
Plug and wire Krypton multimeter H20
Performance characteristics
- 3 Ø voltage (TRMS)
- 3 Ø current (TRMS)
- 3 Ø power factor
- 3 Ø active power, reactive power, apparent power
- Active energy, reactive energy, apparent energy
- Frequency
- Programmable curent/voltage transformer (primary only)
- Additional bar chart display of current in %
- With Modbus RTU (RS485) interface
- With pulse output
Three-phase current transformer for the plug and wire system
Including mounting plate, busbar and mounting rail fasteners
Performance characteristics
- Three-phase current transformer, primary current: 60/100/125/160/200/250 A
- Three-phase current transformer, primary current: 250/400/600/630 A
- Three-phase current transformer, primary current: 800/1000/1250/1
| Item | Item-No. | Packaaging |
| Krypton E20 control panel installation with S0 and RS485 (Modbus RTU) | 22 0002 | 1 |
| Krypton E20 mounting rail installation with S0 and RS485 (Modbus RTU) | 22 0201 | 1 |
| Three-phase current transformer, primary current: 60/100/125/160/200/250 A | 22 0010 | 1 |
| Three-phase current transformer, primary current: 250/400/600/630 A | 22 0011 | 1 |
| Three-phase current transformer, primary current: 800/1000/1250/1600 A | 22 0012 | 1 |
| RJ45 connection cable from measuring instrument to transformer, 1.5 m | 22 0101 | 1 |
| RJ45 connection cable from measuring instrument to transformer, 2.0m | 22 0102 | 1 |
| RJ45 connection cable from measuring instrument to transformer, 3.0m | 22 0103 | 1 |
| Plug-in voltage supply between measuring instruments, 2.0 m | 22 0110 | 1 |

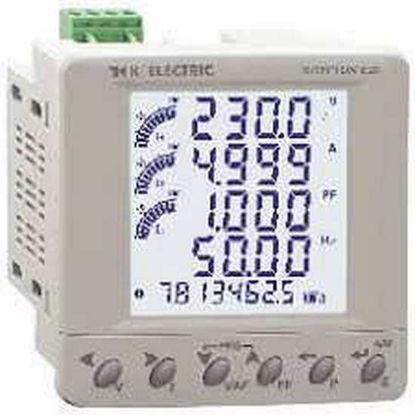

Network analyzer KRYPTON E20 with S0 and RS485 (Modbus RTU) board mounting
Number of pieces in the package 1

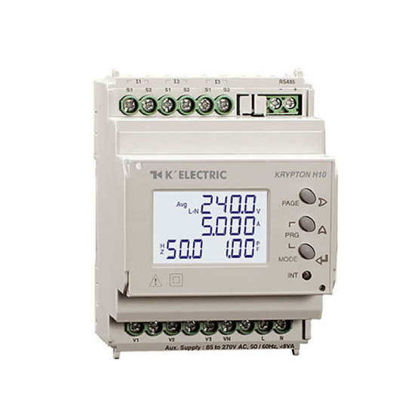

Network analyzer KRYPTON H20 with S0 and RS485 (Modbus RTU) DIN rail mounting
Number of pieces in the package 1
